Video Switchers / Mobile Video Studio / LCD Monitors / Digital Video Converters
 Recorders & Players / Chromakey Solution / Software & Accessories
PDF Files (To donwload: right click > Save Target As):
>Datavideo Price List (23 March 2012)
>Datavideo Video Switchers Price List (17 February 2011)


Video Switchers


SE-500
4-Channel AV Switcher with Quad Output Display
 mp-3000
Features:
• Digital processor, high image quality.
• 4 inputs of s-video and composite video.
• Optional YUV output.
• RS-232 remote control.
• MIDI control interface.
• Color processor for video correction.
• Digital video effects: Split, Picture-In-Picture, Wipe, Fade and Quad display effect.

>Product Overview (PDF)

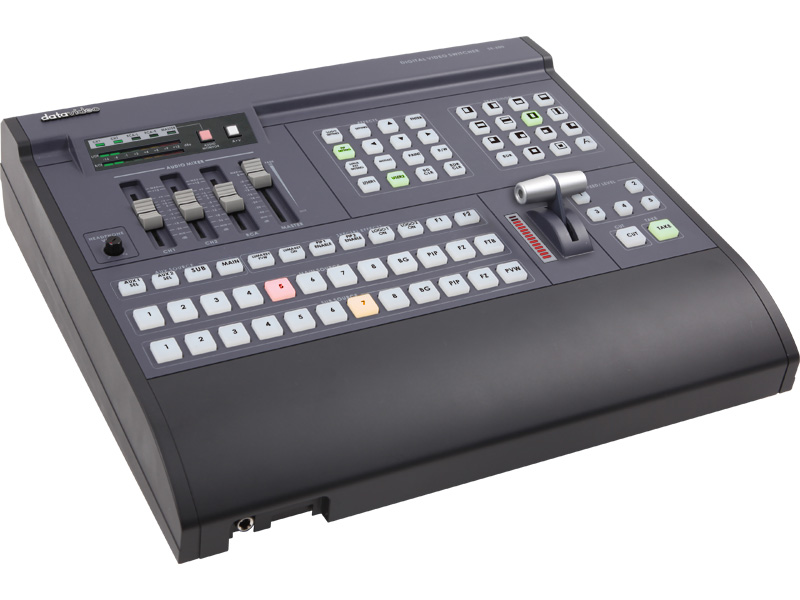

SE-600
8-Channel SD Video Switcher

Features:
• 6 Composite video and 2 DVI  inputs.
• 2 Composite video, 1 YUV/ Y/C (adapter required) and multiple auxiliary output.
• Dual Picture-In-Picture function.
• Dual logo store.

>Product Overview (PDF)

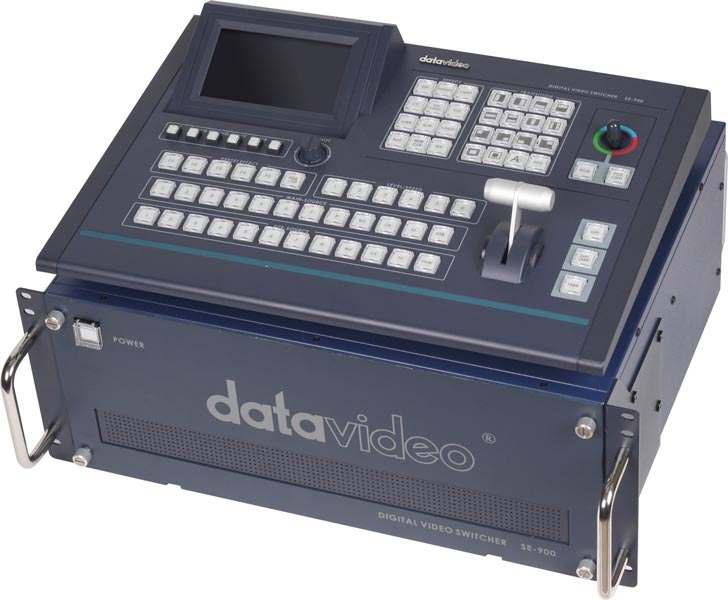

SE-900
8-Channel SDI/DV/CV Switcher

Features:
• Eight inputs with any SD format: SDI, DV, DVI, YUV, S-Video or composite
  depending on the input boards select. Each input includes a frame sync
  and TBC.
• 2 multi-image preview outputs.
• Voice sync - audio delayed to minus 17 frames.
• Audio Input - both balanced XLR and RCA with audio delay for perfect sync
  with DV or SDI video sources.
• Audio Output - One balanced XLR +/- 12Vp-p, 1 RCA stereo.
• Joystick control can work with either RGB color correction (white balance) or
  position for the PIP or Mosaic effect.
• Color processor - white balance for each input. Last settings saved at power
  down.
• Logo overlay included - use 24-bit RGB 96x24 bitmap image or input source.
• Easy titling with Datavideo's CG-100 Character Generator.
• Eight tally outputs, red/yellow LED tally lights included (can control tally lights
on TLM-404 directly).
• Audio may be embedded in the SDI stream.
• One optional chromakey channel - can accept four foreground inputs, four
  background inputs and four chromakey settings.

>Product Overview (PDF)

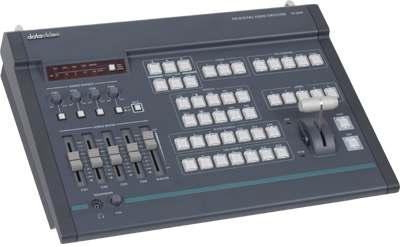

SE-2000
5-Channel HD-SDI Digital Video Switcher


Features:
• Full HD 1920 x1080i and 1280 x720p.
• Input: Choose between 4 x HD-SDI and 1 DVID or 3 x HD-SDI and 2 x DVI-D.
• Output: HD-SDI & HD-YUV HD & DVI-D.
• DVI-D allows for easy integration with titling software like Datavideo CG-100.
• Logo insertion.
• Four-channel XLR audio input.
• Advanced Picture in Picture features.
• Mixing and Wipes (13+ wipe patterns, borders & sharpness).
• Built in tally feature.
• RS-232 control interface for integration to existing equipment.

>Product Overview (PDF)

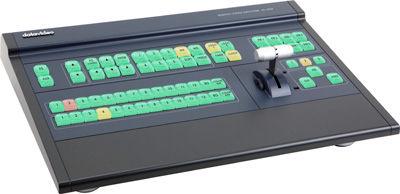

SE-2800
8 or 12-Channel HD/SD Video Switcher


Features:
• 8 channels upgradeable to 12 channels.
• Flexible Input: Combination of HD/SD-SDI, HDMI & Composite video.
• Output: SDI & Composite video.
• Powerful multiscreen monitoring via 2 HDMI outputs.
• 2x Picture-in-Picture display.
• 2x Logo overlay.
• 2-Channel Lumakey.

>Product Overview (PDF)

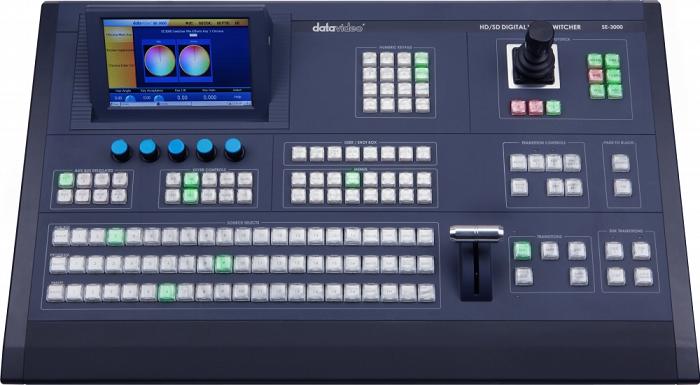

SE-3000
8 or 16-Channel HD & SD Video Switcher



Features:
• 8-Channel Input version (HD-SDI Only).
• 16-Channel Input version (HD/SD-SDI).
• Dual Multi-view Outputs.
• Touch screen to select effects, stills and balance colours.
• Chromakey, dual PiPs & 3D functions.
